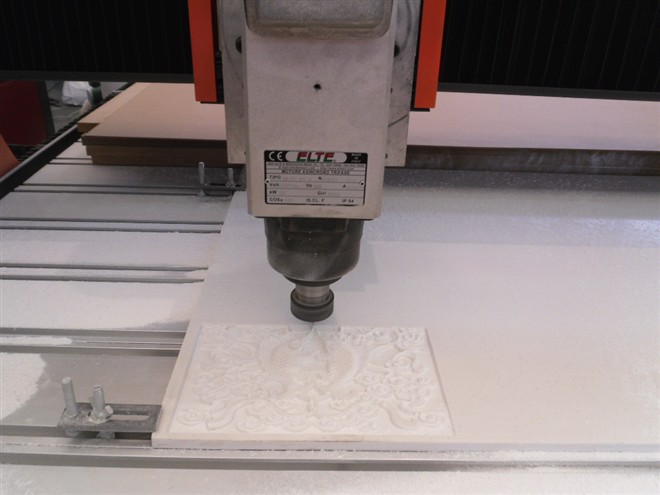

1. Equipped with ELTE 5.6KW spindle motor from Italy , to ensure the machine much stronger

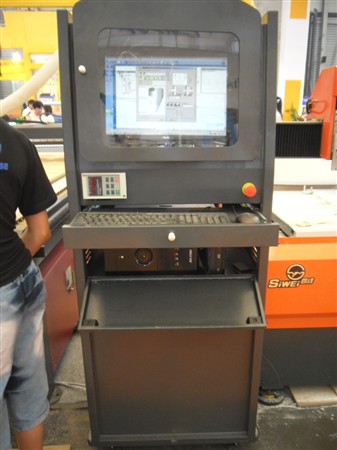

2. Adopt industrial structure design , more durable , independent electrical controlling cabinet, to ensure the system safe , stable and easy maintenance

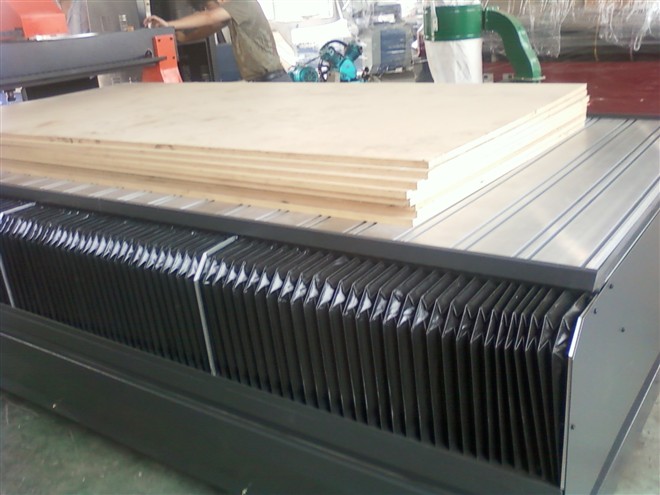

3. All-around anti-dust system , to protect the machine against dusty environment , and prolong the transmission parts lifetime
4. International precision and high speed square linear rail and high speed mute screw , to ensure the perfect processing
5. Adopt more advanced professional CNC controlling system , own functions of restoring from power off, continuation on break point , anticipating working time, auto- feeding blades, ect
Excellent performance for relief processing and cutting
6. Advanced IC design to realize precision calculation and high speed transmitting of data
Compatible with TYPE3 /Artcam/ Casmate / CAXA/ Artgrave . Ect
Technical data
|
Mode
|
SZ1313
|
SZ1318
|

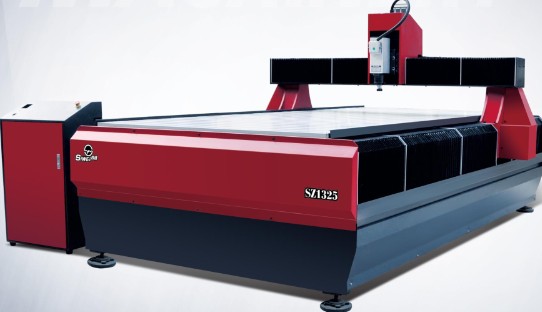

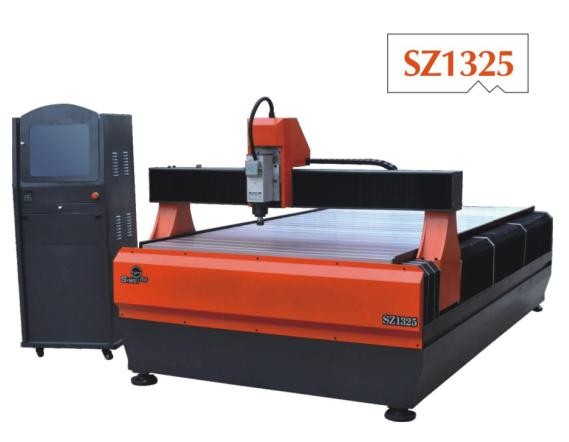

SZ1325
|
SZ1630
|
|
Working size
|
1300x1300x180mm
|
1300x1300x180mm
|
1300x1300x180mm
|
1300x1300x180mm
|
|
Spindle motor
|
ELTE 5.6KW air -cooled spindle motor from Italy
|
|
Motion speed
|
6000-120000mm/min
|
|
Rotating speed
|
0-- 18000rpm
|
|
Engraving tool
|
¢3.175 ¢4 ¢6 ¢12.7mm (optional )
|
|
Dictate format
|
HPGL G- code
|
|
Resolution
|
0.01mm
|
*Dust Cillecting System(optional)
*Vacuum System(optional)
*More power spindle motor can be mounted as requested
*Panasonic Servo system(optional)
*Automatic lubricating system (optional )
*Customers' size of machine is available
